Built for extreme conditions

generation II ABITIBI

Mining

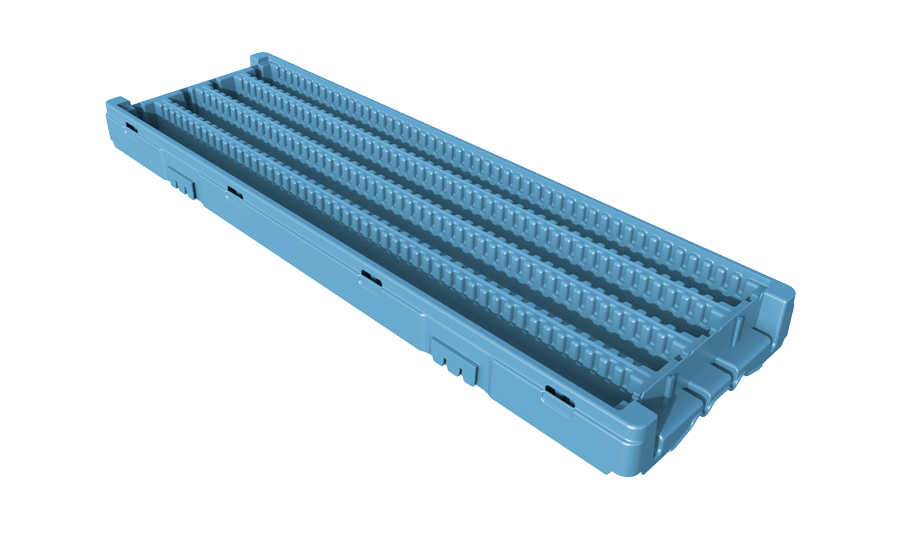

A weather-resistant case with QR and RFID for fast field reading, secure tracking, and inventory control — built for extreme conditions.

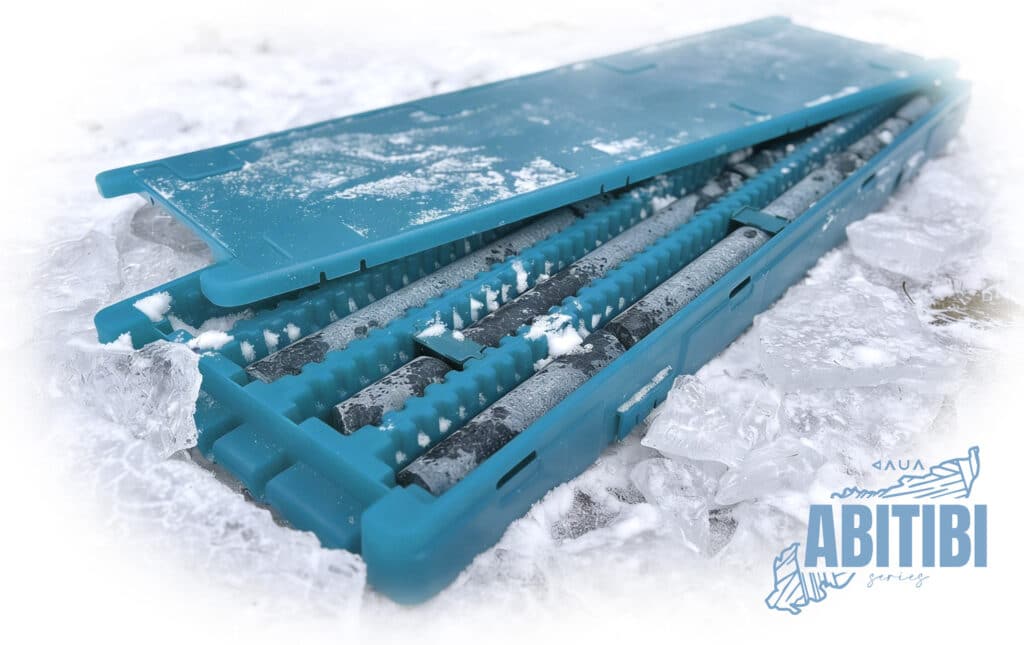

Temperature exposure range: -40°C to +50°C (24 hours). -40°C performance validation in progress.

Core Case develops the only cases with integrated QR Code and RFID, ensuring full traceability of samples. The entire Core Case product line can be transformed into Smart Case, adding technology and intelligence to storage. | Learn How

PQ

  • Length: 110,5 cm / 43.5”
  • Width: 34,82 cm / 13.71”
  • Height: 11,1 cm / 4.37”
  • Storage capacity: 2 m / 6.56 ft
  • Weight: 2,915 kg / 6.43 lbs
  • Core Ø: 85mm / 3.3”
See more

HWL

  • Length: 110 cm / 43.31”
  • Width: 34,58 cm / 13.61”
  • Height: 10,12 cm / 3.98”
  • Storage capacity: 3m / 9.84 ft
  • Weight: 2,63 kg / 5.80 lbs
  • Core Ø: 76,2mm / 3”
See more

HQ

  • Length: 110,5 cm / 43.50”
  • Width: 35,01 cm / 13.78”
  • Height: 8,95 cm / 3.52”
  • Storage capacity: 3 m / 9.84 ft
  • Weight: 2,355 kg / 5.19 lbs
  • Core Ø: 63,5mm / 2.5”
See more

NQ

  • Length: 111 cm / 43.7”
  • Width: 34,53 cm / 13.59”
  • Height: 7,4 cm / 2.91”
  • Storage capacity: 4 m / 13.12 ft
  • Weight: 2,445 kg / 5.39 lbs
  • Core Ø: 47,6mm / 1.9”
See more

BQ

  • Length: 110,5 cm / 43.5”
  • Width: 34,08 cm / 13.42“
  • Height: 5,99 cm / 2.36”
  • Storage capacity: 5 m / 16.40 ft
  • Weight: 2,01 kg / 4.43 lbs
  • Core Ø: 36,4mm / 1.4”
See more

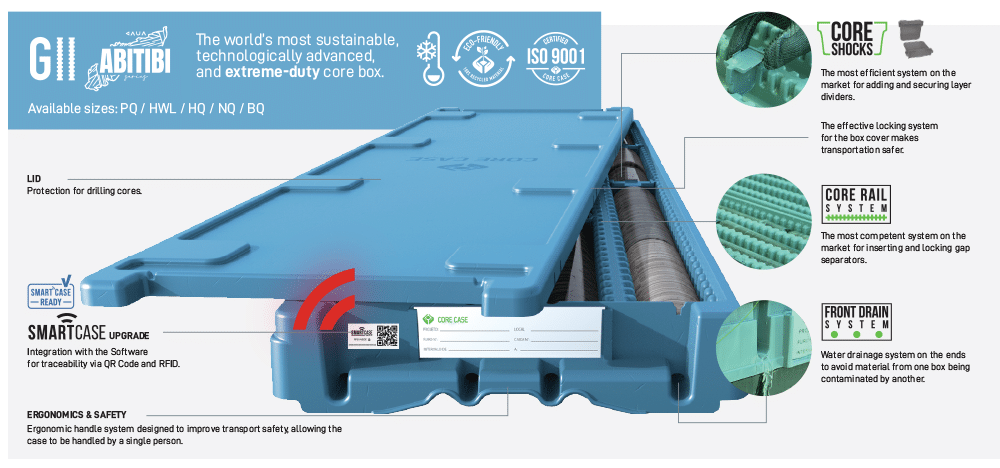

LID

Protection for
the drill cores.

See more

Core Shocks

Writable surface on the core separators
for a better organization and data recording.

See more
diferencial-1

Front Drain System — Water drainage system on the ends to avoid material from one box being contaminated by another.

diferencial-3
Molded grip to make it easier and safer to handle and transport the boxes.
diferencial-2

Stack Locking System — Side-linking system to join boxes, to make them safer and easier to stack and transport.

DETALHE-SMART-CASE-rfio8mr1m2hqjvgapop6euvmosvgrvijc4x7pjpbx0

Upgrade available for SmartCase. Possible integration with the APP Manager for traceability via QR CODE and RFID.

diferencial-4
The efficient locking system for the box cover makes transportation safer.
diferencial-7

Core Rail System — The most efficient system on the market for inserting and locking gap separators.

diferencial-5

Core Shocks — The most efficient system on the market for adding and securing layer dividers (Core Shocks).

diferencial6
Safe and easy system for labelling the drill core.

Request
GII ABITIBI
for your
company

Between Ontario and Quebec, the Abitibi Greenstone Belt is a 2.7-billion-year-old natural archive. Formed in the Archean, it preserves rocks that tell the story of our planet’s dawn.

Here, komatiites, ultramafic lavas that flowed at extreme temperatures, created unique textures like spinifex, with elongated olivine crystals arranged in mesmerizing radial patterns. But the magic of Abitibi goes beyond the rocks:

🌌 Northern Lights over gold deposits: On winter nights, when temperatures drop to -30°C, the sky lights up with green and blue curtains dancing above the mines, creating a breathtaking scene.

⛏️ Mining that withstands time (and cold): This region is one of Canada’s largest gold producers, with operations facing extreme conditions. Frozen ground, glacial temperatures, and Arctic logistics make mining here a true challenge of engineering and resilience.

❄️ Speaking of extreme cold… We know that equipment needs to be as resilient as the rocks they extract.

The geology of Abitibi reminds us: beauty and strength are forged together, revealing enduring stories beneath the earth.
